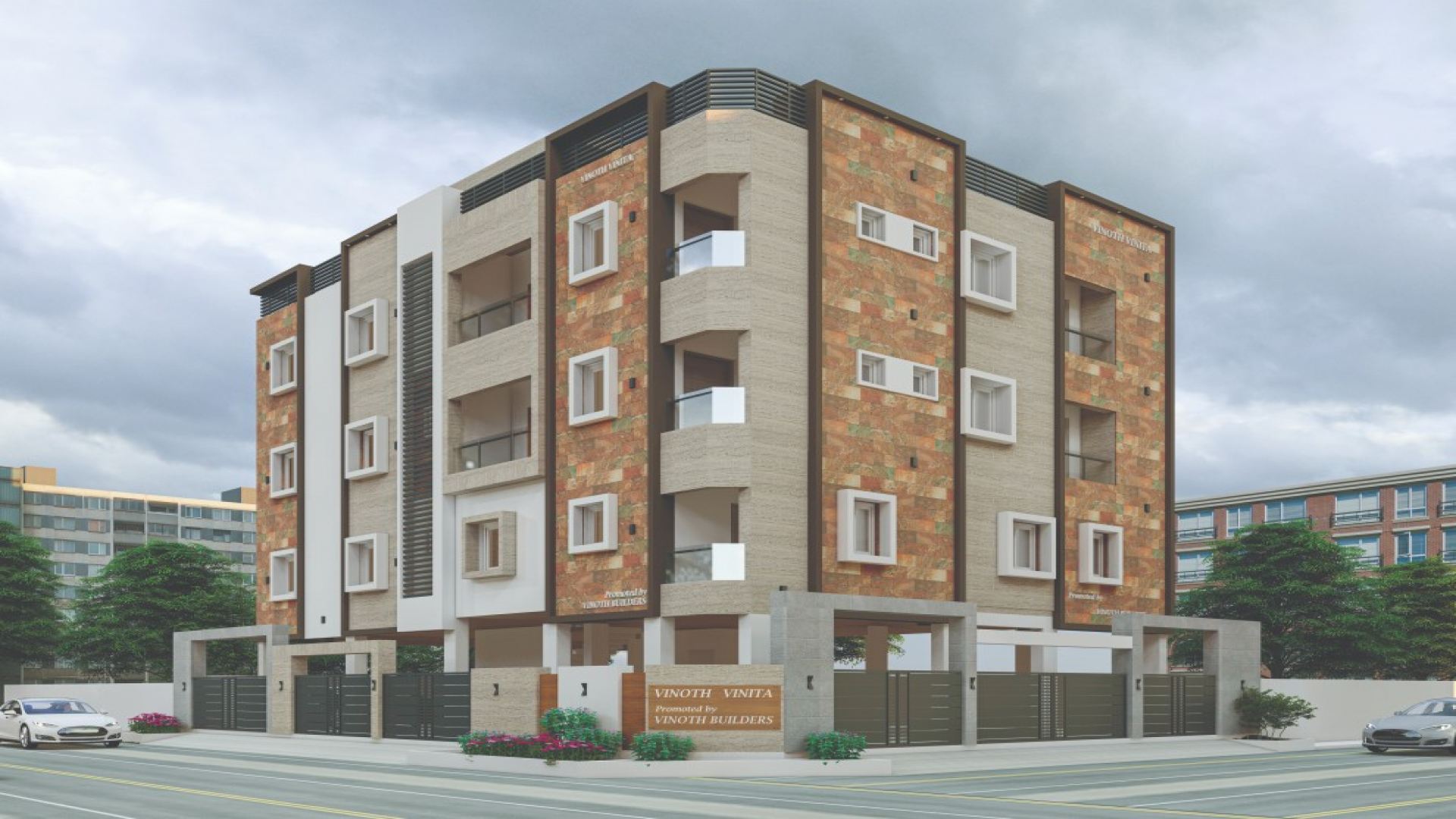

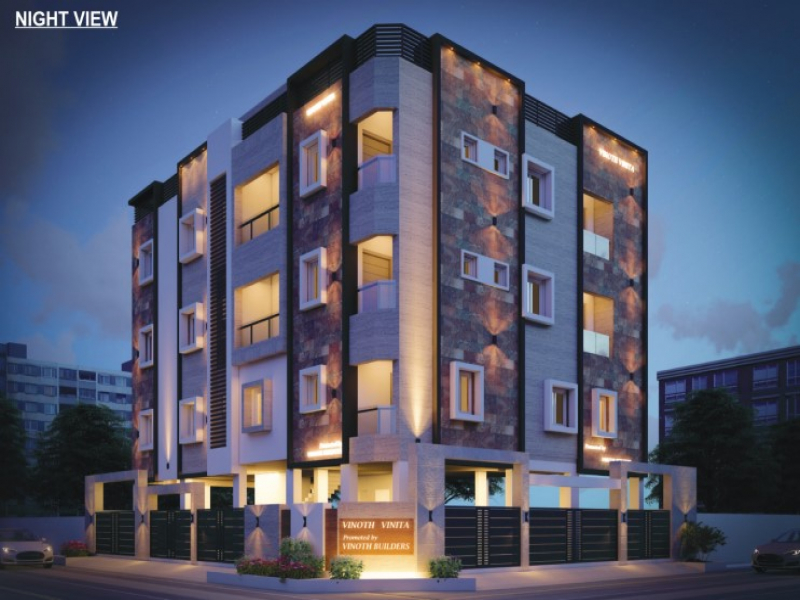

Vinoth Vinita in Virugambakkam

A. STRUCTURE:

1. Structure : Reinforced cement concrete framed Structure

2. Roof : Reinforced cement concrete roof and high-quality cool roof tiles for terrace.

3. Walls : AAC blocks (Autoclaved aerated concrete)

4. Wardrobe & Loft : Kitchen – open cupboard and RCC loft (as per drawing)

B. FLOORING:

1. Hall, Dining, Kitchen & Bedrooms : Vitrified tiles (2’0”x 2’0”).

2. Toilet, Balcony, Service/ utility : Anti-skid Ceramic tiles (1’0” x 1’0”).

3. Kitchen Counter : Black granite above RCC slab

C.WALL TILES:

1. Wall tiles : Glazed tiles (1’0 x 1’6”) to a height of 7’ 0” in toilets and 2’0” over the kitchen counter.

2. Skirting : Vitrified tiles with 3” height

D. JOINERIES:

1. Main door : a) Frames with seasoned solid Teak wood of 5”x 3” in size.

b) Shutters with 35 mm thick Solid core hardwood content, boiling water proof grade flush door with teak veneer both sides including Varnish finish.

a) Frames with Seasoned solid wood of 4” x 3” in size.

b) Shutters with 30 mm thick Solid core hardwood content, boiling water proof grade f lush door with Enamel paint finish.

a) Frames with Seasoned solid wood of 4” x 2.5” in size.

b) Shutters with 30 mm thick Solid core hardwood content, boiling water proof grade f l ush door with Enamel paint finish.

1. Hall, Dining and Bedrooms :

UPVC frame and openable shutter with 4mm thick plain glass including M.S Grill as per Developer design.

UPVC frame and sliding shutters with 4mm thick plain glass including M.S Grill as per Developer design

UPVC frame with louver glass 4mm thick plain as per Developer design

IV. Position of Joineries Position, size and provision of Doors, Windows and Ventilators :

As per Drawing

E. HARDWARE FITTINGS:

1. Main door : With Digi lock

2. Bedroom Door : With Mortice lock

F. FINISHES:

Neatly plastered in CM

1. Internal wall & ceiling : Premium emulsion 2 coats over one coat of primer and 2 coats of Putty.

2. External wall : Weather proof exterior emulsion 2 coats over one coat of primer.

3. Wood work : Enamel paint 2 coats over one coat of wood primer and 2 coat of chalk putty.

4. Grills : Enamel paint 2 coat over 1 coat of metal primer.

5. Carparking Area : Weather proof exterior emulsion paint 2 coats over 1 coat of primer.

6. Colours and Brand : As per Developer’s choice.

G.ELECTRICAL:

Concealed wiring with IS brand with Appropriate gauge

Living and Dining with Touch Modular Switches. Other rooms with Legrand lyncus or its equivalent. Entire portion without any fittings and fixtures

Wiring for inverter facility for 1 light point and 1 fan Point in each room without battery and inverter.

a) Hall & Dining : Hall : Fan point – 1 No. Light point – 4 Nos TV unit: 5 Amps socket point – 5 Nos TV Point – 1 No. Telephone point – 1No. Dining: Fan point – 1 No. Light point – 3 Nos

b) Master bedroom : Fan point - 1no, Light point – 2 nos, 5 Amps socket point - 4 nos, AC point - 1no TV point – 1 no. Telephone point -1 no.

c) Common bedroom : Fan point-1no, Light point -2nos, 5 Amps socket point – 3 nos AC point - 1no

d) Kitchen : Light point -2 nos, 5 Amps socket point- 3 nos 15 Amps socket point-2nos Chimney/Exhaust fan 5 Amps point –1 No.

e) Toilet : Light point-2 nos, 15 Amps socket point- 1 no Exhaust fan 5 Amps point-1 no.

H. PLUMBING:

1. Concealed pipe : CPVC of Ashirwad or its equivalent with suitable dia

2. Open pipe : PVC Pipe of Truebore or its equivalent with suitable dia II. Sanitary:

1. Closet : EWC Floor mounted single piece closet in all toilets of Parry ware make or its equivalent.

2. Washbasin : Wall hung wash basin of Parry ware make or its equivalent in all toilets and dining

3. CP fittings : Parry ware or its equivalent

4. Sink : Stainless Steel sink of Diamond brand or its equivalent.

I. COMMON AMENITIES:

1. Water Supply : a) Bore well with 102’ depth with 1.5 HP CRI JET motor from bore to OHT

b) Underground sump for metro water with 12500 liters capacity with 1.5 HP CRI or equivalent submersible motor from sump to OHT.

2. CCTV Surveillance : 8 nos of bullet 2mp Camera with 8 Channel DVR.

3. Lift : 6 Passengers Lift with Automatic door, ARD & VVVF.

4. Video Door Phone : Video door phone with 4” colour monitor with common access control.

5. Car parking Area : Ceramic Parking Tiles.

6. Set back areas : Cement concrete inter locking paver block 65mm thick.

J. SPECIAL AMENITIES:

1. Inside the flats : Living & Master Bedroom – Any one wall with texture finish coating as per Builder’s choice.

2. Safety amenities : Burglar and Gas Leak Alarm with remote control.

3. Other Amenities : a) Common lights with timer control for Auto on off.

b) Children play area
