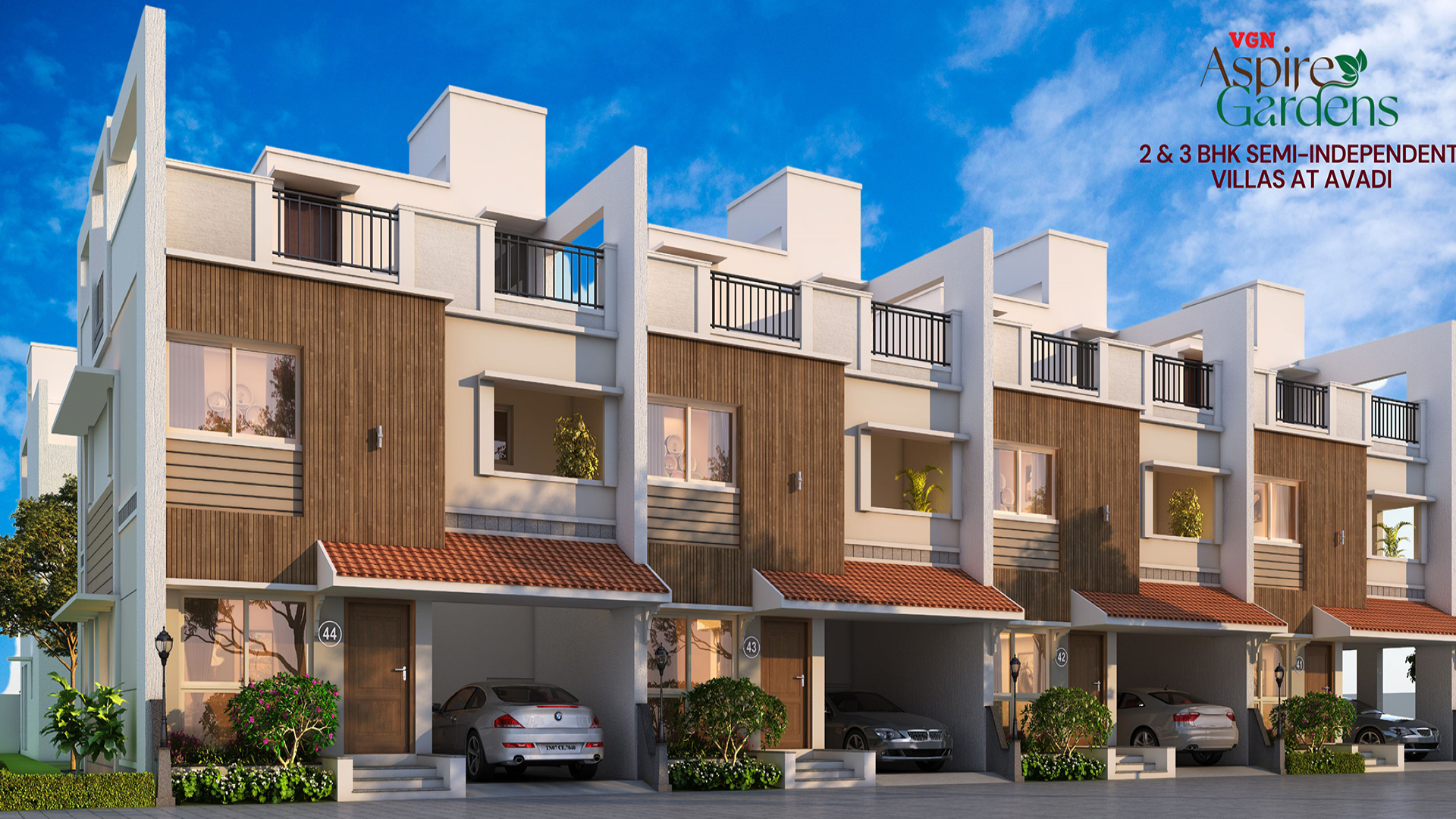

VGN Aspire Gardens in Avadi

I. Structure

RCC Framed Structure. 9" thk Red Brickwork for External Walls & 41?2" thk for Internal Walls. Designed for Seismic Zone - 3

Plinth height - I'6" from Driveway level.

Floor to Roof top (incl slab) - 10'0".

Lintel height shall be 7'-0" from FFL.

Loft will be provided any one side in all bed rooms & Kitchen Preferably above the Entry.

2. Joinery

Main Door: Teak wood frame with solid designed panelled door including safety latch & magnetic catcher. All Hardwares shall be in Brass finish.

Bed room Doors: Country Wood Frame with compressed door finished with Laminate including magnetic catcher. All Hardwares in SS Finish.

Toilet: Country Wood Frame with Flush Door Shutter with Laminate on one side PU Coated on other side. All hardwares in SS Finish.

Terrace : Country Wood Frame with Flush Door Shutter with PU Coat on both sides. All hardwares in SS Finish.

Windows / French Windows: UPVC - Openable Windows with Clear Glass & Grill

Ventilator: UPVC Louvers with Pin Headed Glass.

French Door: C.W.Framed with Glazed Shutter with grills

Grills: For all French Windows & Windows - 12 mm sq. rod with std design

3. Handrails

Staircase handrail : S.S Hand rail - As per Architect's Design

Balcony handrail : MS Hand rail - As per Architect's Design / Elevation

4. Flooring

Entrance Veranda / Steps: Granite Flooring

Staircase: Granite Flooring with 4" high skirting

Living, Dining & Bedrooms: 2'0"x 2'0" Vitrified Tile flooring with 4" high skirting.

Kitchen : 2'0"x 2'0" Vitrified Tile flooring of Mat finish With 4" high Skirting

20mm thk G20 Polished Granite top for Kitchen platform

Balcony: 12"x12" - Anti Skid Tile flooring with 4" high skirting

Toilet / service : 12"x12" - Anti Skid Tile flooring

Car Parking: Eurocon Tile flooring

5. Dadoing

Toilet: Glazed Ceramic Tile dado up to 7'0" Height

Kitchen: Glazed Ceramic Tile Dado Tile upto Lintel Height from Cooking Platform

Dining: Glazed tile dado for 2' ht above Washbasin

6. Painting

Ceiling: 2 coats of Emulsion over I coat of Primer and putty (Premium).

Inner Walls finish: 2 coats of Emulsion over I coat of primer & 2 coats of Putty (Premium).

Exterior Walls: 2 Coats Exterior Emulsion over one coat of Primer (Protech)

Main Door : Melamine Matt Finish Polish.

All other Doors: Enamel Paint Over Putty & Primer

Grills: Two coat Enamel Paint over One coat of Primer

7. Electrical

Power supply: 3 phase power supply connection

Safety device : MCB & ELCB (Earth leakage Circuit braker)

Switches & sockets: Modular box, Modular switches & sockets of approved brand.

HOB point: Point provided in the kitchen

Light points: Sufficient Light points and Power Sokets will be provided in all rooms.

TV & Data Points: TV& Cat-6 cable for Data Points Provision for all Bed Rooms & Living

Split AC : Split AC Provision for Living & all Bed Rooms

Fridge : Fridge Provision in Kitchen or Dining

Inverter provision: Wiring for light and fan points

Exhaust fan: Exhaust Provision for all Toilets & Kitchen

8. Sanitation & Plumbing

Kitchen: SS Sink(Single bowl). Provision for Water purifier.

Dining: Wall mounted Wash Basin with necessary fittings.

Toilet: Wash basin in in all toilets, Wall-mounted EWC with concealed tank & two in one tap with health faucet, diverter & Over head shower.

Geyser Provision with hot & cold piping provision

Sanitary Fittings : Parryware/Jaquar / Hindware or Equivalent

CP fittings : Parryware/ Jaquar or Equivalent

9. General

Common STP to suitabale capacity

Invidual Borewel

Weathering Course brick jelly lime concrete on terrace floor with pressed tiles

Water proofing for all Sunken & Terrace Area.

Invidual Sump - 6000 Lts Capacity/OHT - 1500 Lts Capacity

Anti termite treatment will be done

Landscaping

Rain Water Harvesting
