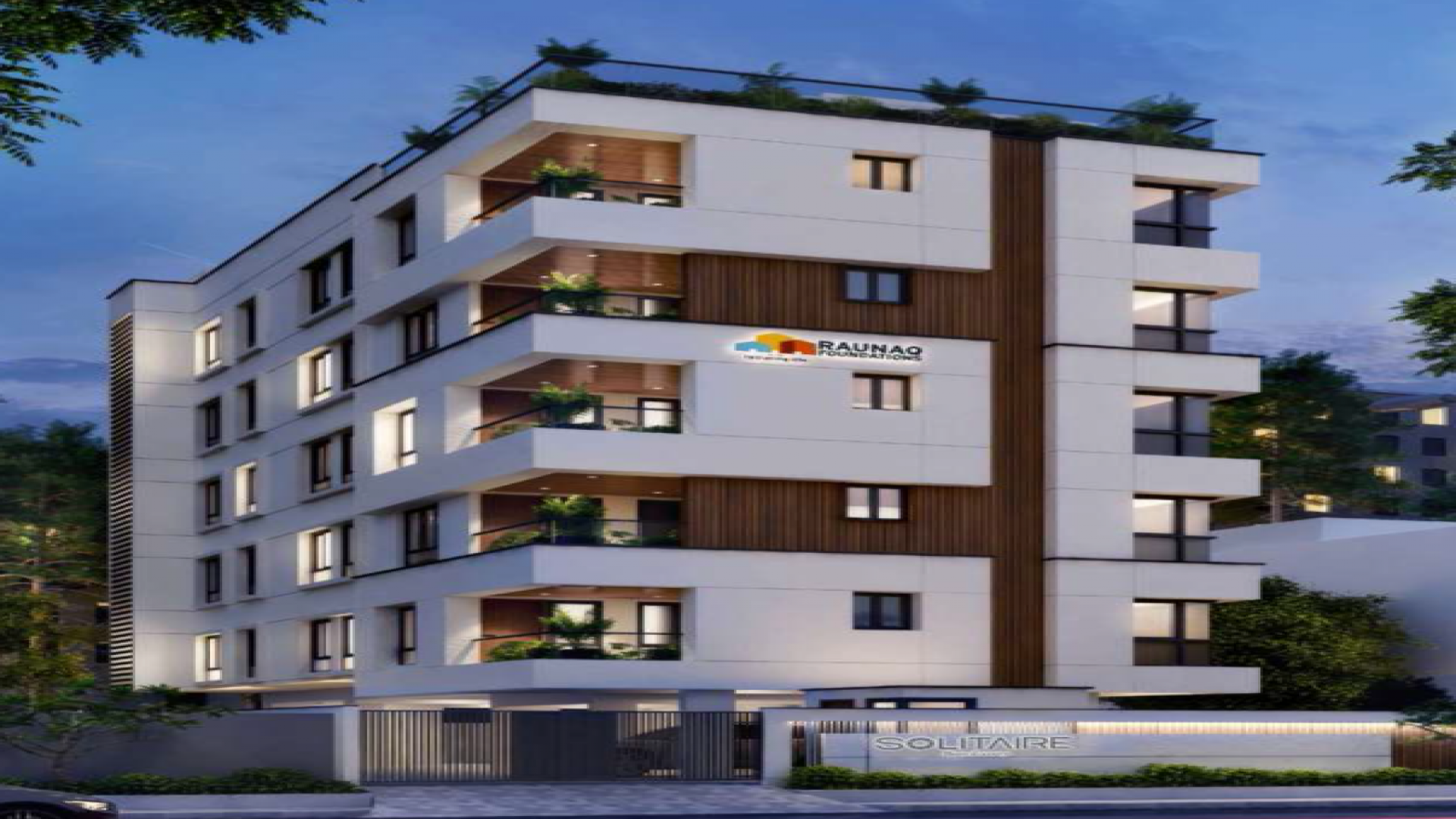

Raunaq Solitaire in Adyar

Super Structure

R.C.C. framed structure with RCC columns, beams and slabs.

Walls using Bricks/AAC Blocks/ Concrete Blocks

Geotechnical Investigation (Soil Test)

Conducting Soil Investigation to determine the STP – Value for the proposed construction.

Derivation of a Soil Test Report with suitable recommendations for the foundation based on the soil investigation.

Ground Water Investigation (Bore Well)

Divining the bore well using scientific methodology and executing the same.

Water Test Analysis to determine the TDS (Total Dissolvable Solids).

Derivations of a report to understand the TDS values (Total Dissolved Solids) and to determine the LPH discharge (Liters per hour).

Foundation

Earthquake resistant R.C.C. framed structure with suitable foundations based on the geotechnical investigation report. In compliance with IS 1893-2016, IS 456-2005.

Anti-Termite treatment in compliance with IS 6313-2001.

Basement height (From existing road level to car park flooring level) shall be 1’6? feet.

Basement filling with filling soil, topped and consolidated with 6? inches of M. Sand and 6? Inches of P.C.C with a mix ratio of 1:4:8.

Electrical & Power Back Up

3 phase electricity supply and independent meters.

FRLS wires.

Split A/C points for Living, Dining & all bedrooms.

Modular switches and sockets of GREAT WHITE/ LEGRAND.

Earth leakage circuit breakers to prevent shock.

DG power back for the common area for flat 3 KVA.

TV points in all bedrooms.

2-way switches in all bedrooms.

Kitchen

CP fittings from JAQUAR/KOHLER/ROCA.

Provision for an exhaust fan, refrigerator, and water purifier.

Adequate power points for all kitchen appliances.

Ceramic/Printed files on the wall 2? above the countertop.

Inner Plumbing

Bathroom and kitchen water lines with Astral/Ashirwad CPVC pipes.

Overhead tanks to the bathroom and kitchen water lines with Astral/Ashirwad UPVC pipes.

Outer Plumbing

Outer waste line, soiline, rainwater harvesting lines shall be with 4? inch and 6? inch dia of 4 kg/ SQ.CM pressure with necessary specials of Astral/Ashirwad PVC pipes.

Overhead tanks to the bathroom and kitchen water lines with Astral/Ashirwad UPVC pipes.

Sanitary & CP Fittings

All toilets shall have concealed wall hung closets with soft closing seat covers from JAQUAR KOHLER/ROCA.

All toilets shall have a white wash basin with the necessary fittings from JAQUAR/KOHLER/ROCA.

Overhead shower and Arm from JAQUAR/KOHLER/ROCA.

Toilets shall be provided with glass shower enclosures.

Painting & Finishing

Internal walls and ceiling shall be finished with 2 coats of Asian wall care putty. One coat of primer, Two coats of premium emulsion from Asian Paint.

M.S. Grills shall be painted with one coat of zinc chromate primer and finished with two coats of synthetic enamel paint from ICI.

External walls shall have one coat of cement-based textured finish, one coat of exterior primer and two coats of weather shield max from Asian.

Flooring & Wall Tiles

Living, Dining and Bedrooms shall have First quality vitrified tiles from SOMANY/RAK/KAJARIA 4? feet X 2? feet tiles with 4? inch height skirting.

Bathrooms shall have First quality wall tiles at 2? feet X 2? feet glazed/matt from SOMANY/RAK/KAJARIA and flooring shall have matching first quality anti-skid tiles.

Bathroom flooring shall have a 3mm spacer with matching epoxy grout.

Doors & Windows

Main entrance door – Teak wood frame & shutters with natural walnut veneered solid panel shutter.

Internal doors-Steam beach wood / Teak wood frame with laminate finish.

Toilet door – WPC door.

UPVC/Aluminium openable windows from SAINT GOBAIN/VEKA.

MS grills in all windows/with mosquito mesh.

Locks from YALE/DORSET.

Special Amenities

Landscaping in common areas.

Reserved car parking for each flat.

Lobby with elegant seating on the still floor.

CCTV surveillance camera with recording facility.

Automatic lift with V3FF & ARD from JOHNSON/OTIS ELEVATORS.

Generator from KIRLOSKAR GREAVES with adequate capacity.

Rainwater harvesting.

Sump and overhead tank for metro water & borewell.

A common servant toilet shall be provided.

One borewell for supplement usage.

Terrace waterproofed with a layer of tiles.

Staircase with handrails.

Pest control measures at all stages.
