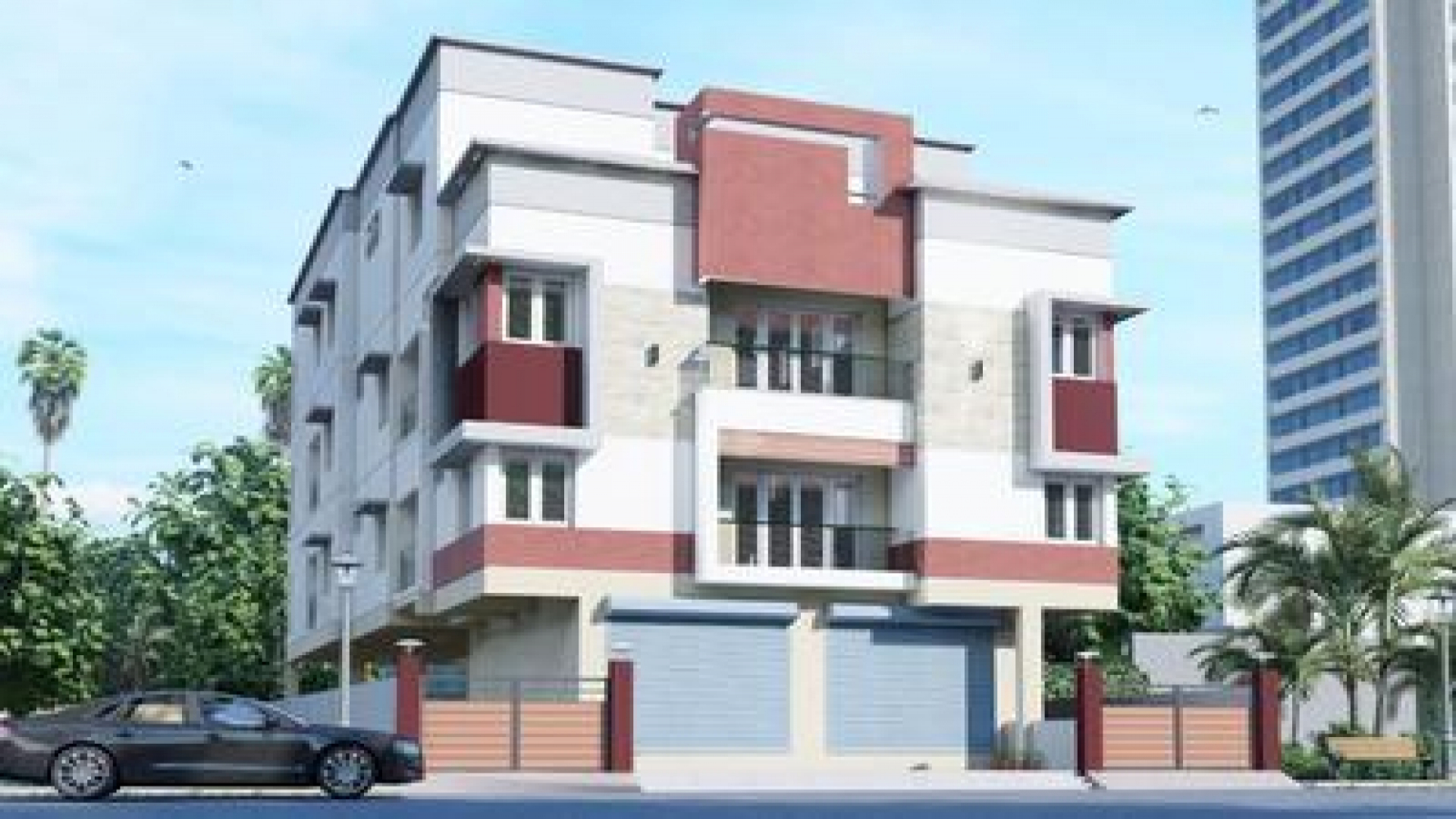

Patson Planet

Foundation:

Suitable Open Foundation will be provided based on Soil conditions under structural engineer guidance.

Structure:

1.RCC framed for beams, slabs, lintels, etc..

2. Brick work – 9” Outer wall and 4-1/2” for Inner wall.

3. Cupboard using Kadappa (4’0” length) in all the bed room.

4. Plastering: Rough finish at outer, smooth finish at inner.

LOFT & Kitchen Platform:

R.C.C loft of 21” wide at a height of 7’0” from floor level in all the bed room at one side.Kitchen platform will be of Black Galaxy Granite 24” depth at a height of 2’6” from floor level. Diamond stainless steel single bowl sink with single drain board. (18”X24”)

Electrical and Plumbing:

1. Modular switches – NORWOOD/ROMA Switches,

2. Polycab or Norwood wires,

3. A/C Point in all Bedrooms,

4. 5Amps at every switch box,

5. 4nos of 15Amps provided,

6. TV point in all bedrooms and hall.

7. Mixed Tap with cold water and hot water provided with shower. (PARRYWARE)

8. PVC pipe for External & CPVC pipe for Internal Concealed pipe.

9. Two ceramic wash basin.

10. One INDIAN Closet with Tank and one WESTERN Closet.

11. Switch points as per customer choice.

DOORS:

1. African Teak 1st Quality Main Door 3’6”X7’0” with polishing,

2. Other doors -2nd Quality Teak frame with premium Flush doors 3’0”X7’0”,

3. Toilet – PVC hard door single panel ,

4. Windows – UPVC open window with grill and fittings provided. French window in UPVC sliding connecting Balcony.

5. Grill – MS Square 8mm

Flooring:

2x2 Vitrified Tiles for Living Room as well as Bedroom @ Rs.60/ sq.ft, Whereas Toilet 7’ height Wall Tiles and Kitchen 2’ ht Wall Tiles provided-Rs.40/sq.ft)

For Staircase: Granite stone will be fixed for flooring and MS Steel pipe will be fixed as hand railing.

For Car parking: Paver blocks will be laid throughout by marking respective flat number in Yellow paint with Lights.

Painting:

Inner wall - 2 coat Asian wall putty, 1 coat primer, 2 coat Tractor Emulsion with roller finish. Outer wall–2 coat cement paint, 2 coat of ACE/APEX Emulsion. TEXTURE Paint at Front side/Doors & Grill- Synthetic Enamel Paint.

Weathering:

Lime brick jelly with top covered by 9”x9”weathering proof tiles.
