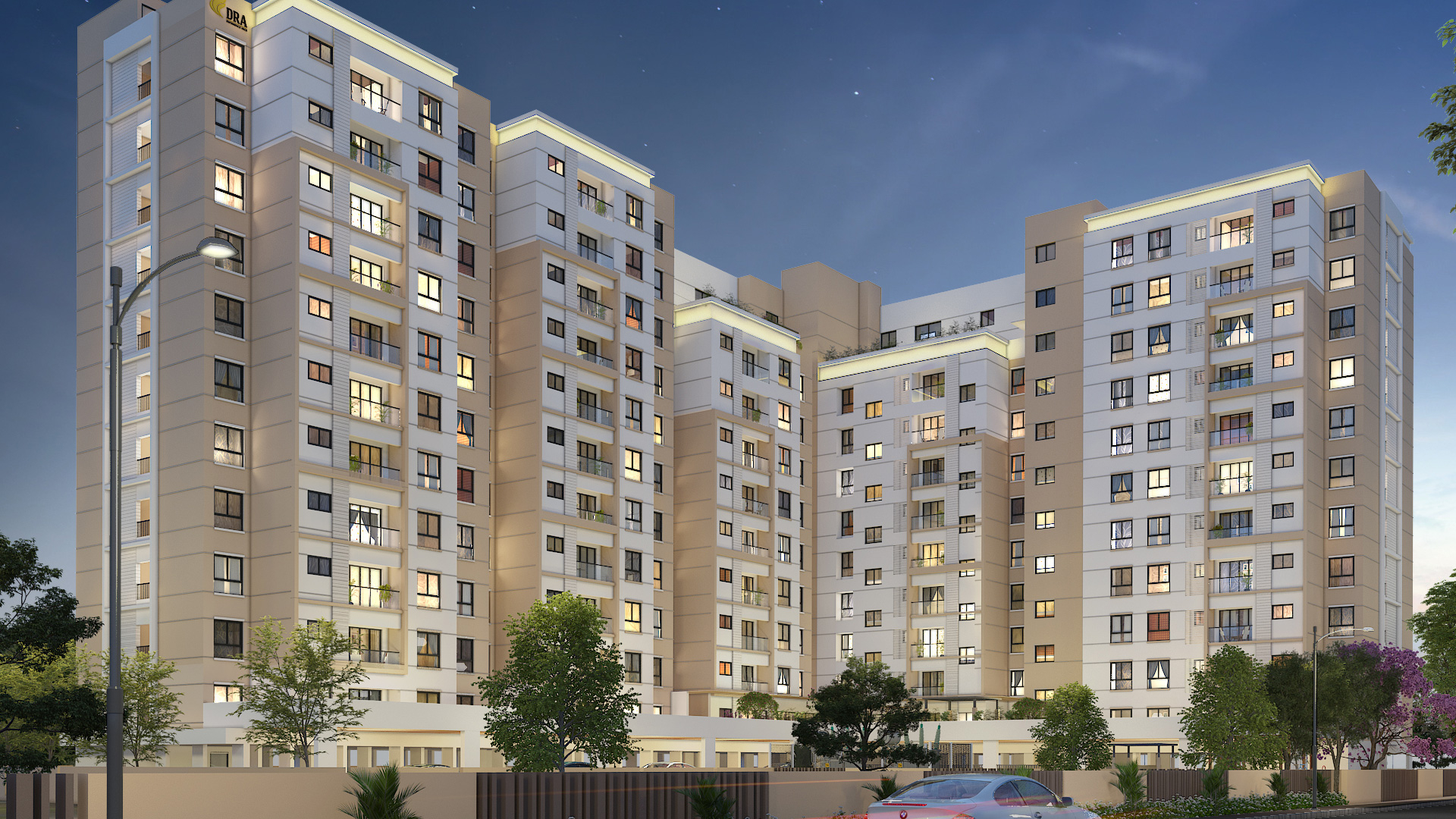

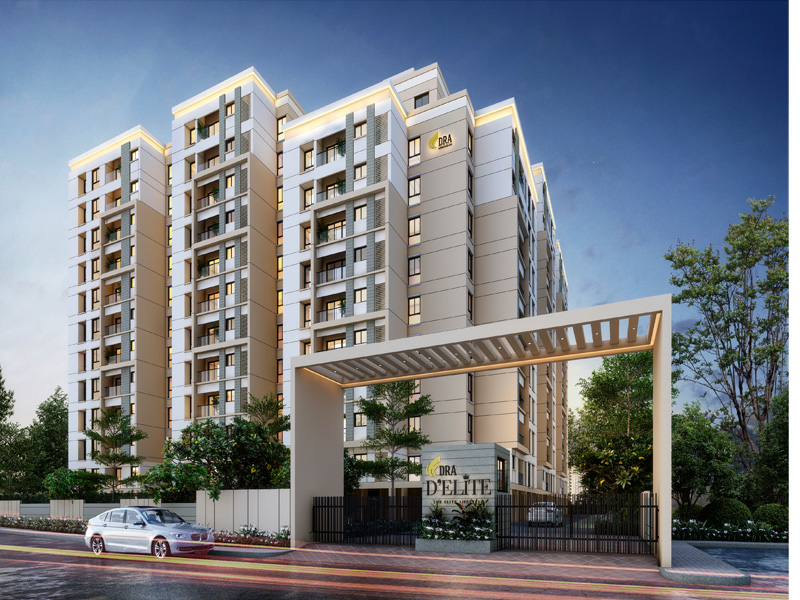

DRA Delite in Sholinganallur

Substructure And Super Structure

Raft foundation and single basement as per structural design

RCC framed superstructure and AAC blocks used for external / internal walls

Earth quake resistant structure adhere to Seismic Zone Ill

Anti-termite treatments wherever applicable during construction stage,/p>

Flooring

800mm x 800mm Vitrified tile flooring and skirting for Living / Dining

Wooden finish vitrified tile flooring and skirting for Master Bedroom- (U)

600mm x 600mm Vitrified tile flooring and skirting for Other Bedrooms & Kitchen

300mm x 300mm Anti-skid ceramic tile and skirting for Balcony

300mm x 300mm Anti-skid tile flooring for all the toilets & utility

Private open terrace flooring as per landscaping architect design

Kitchen & Utility

RO Water Purifier (U)

Provision for Chimney

300mm x 450mm Glazed ceramic wall tiles up to 3'-0" height in utility

Provision for inlet and outlet of washing machine

Bathroom Wall & Ceiling

300mm x 450mm Glazed ceramic wall tiles up to 7'-0" height

Grid false ceiling above 7 feet height (easy maintenance of plumbing lines & covers geysers)

Common Area

Ground floor lobby : Granite flooring with gypsum false ceiling

Lift cladding : Granite cladding for all the floors

Staircase : Granite for all the floors

Corridor: Rustic finish vitrified tile flooring with skirting

Terrace : Weathering course with pressed clay tile

Basement & Stilt : Granolithic cement flooring with reflector paint demarcation for traffic

Driveway : Well defined driveway with interlocking paver block laid all-round the building

Bathroom Fittings

CP fittings: JAQUAR / ROCA or equivalent will be provided.

Single lever HI-FLOW concealed diverter for hot & cold mixer with overhead shower will be provided in all the toilets

Sanitary Fittings: JAQUAR / AMERICAN STANDARD or equivalent will be provided

Rimless wall mounted EWC for all the toilets. (The rimless toilet easier to keep clean, it will stay more hygienic after every flush.

The direct flush technique used by most rimless toilets shoots water around the whole of the bowl, which cleans the pan much more effectively than a regular toilet) - (U)

Wash Basin: Granite counter top wash basin will be provided for all the toilets -(U)

Provision for Geyser & Exhaust Fan

Doors

Main Doors 7 Feet Height: African teak wood frame with 40mm thick flush shutter both the side Teak Veneer finish with architrave. Smart biometric door lock Dorma / Dorset or equivalent, Iron mongeries like tower bolts, door viewer, magnetic catcher in SS finish

Bedroom Doors 7 Feet Height: Laminated Pre-engineered doors with 35mm thick flush shutter with architrave. Iron mongeries like door lock of Dorma / Dorset or equivalent locks, thumb turn with key, magnetic catcher, tower bolt etc.

Toilet Doors 7 Feet Height: Laminated pre-engineered doors with 35mm thick flush shutter with architrave. Iron mongeries like door baby latch of Dorma / Dorset or equivalent, tower bolt, PVC bush etc.

Balcony Doors: French UPVC doors with bug mesh will be provided. -(U)

Windows

UPVC Windows with bug mesh will be provided inside the apartments (Bug mesh protects you from the menace of mosquitoes) -(U)

UPVC Ventilator with suitable glass louver will be provided.

UPVC Windows will be provided for common area wherever required.

Window safety grills will be provided for all the sliding windows inside the apartment.

Painting

Internal walls: Two coats of Acrylic Emulsion over one coat primer and two coats of wall putty.

Ceiling: Two coats of Acrylic Emulsion over one coat of primer

External walls: Plaster finish with weather proof texture paint or weather proof emulsion paint as decided by the architect -(U)

Lobby, Corridor & Staircase walls: Two coats of Acrylic Emulsion over one coat primer and two coats of wall putty.

Stilt floor: Two coats of Acrylic Emulsion over one coat primer and two coats of wall putty.

Basement/Parking area: Finished with cement paint

Railing

Balcony Railing -SS Railing with toughened glass as per Architect design -(U)

Staircase Railing - MS Railing as per Architect design

Water Proofing

Water proofing in basement, podium, bathrooms, balcony, utility/service, UG sumps & overhead tanks.

Plumbing

All internal plumbing lines are CPVC & external plumbing in UPVC/PVC pipes.

All Drainage plumbing in PVC pipes.

Adequate number of rain water harvesting pit will be provided

Water Supply System

Hydro pneumatic Pressure System (Provides water at constant pressure in all apartment irrespective of the floor vis-à-vis traditional overhead tank) -(U)

Electrical & HVAC

All internal and external PVC Conduits with ISI brand

Fire Retardant Low Smoke (FRLS) copper wire of a quality ISI brand KEI/Havel's/Polycab/equivalent

Modular Switches and sockets will be of Panasonic / L & T / MK or equivalent

3 Phase connection for each apartment

RCCB safety device will be provided for each apartment (protection against voltage fluctuations, earth fault as well as any leakage current)

Split Air-conditioner points will be provided Living/ Dining and all the bedrooms.

All Conduit: Pre - installed as provision for A/C (Easy for fixing your air-conditioner without calling technicians to drill the walls)

Power Backup

600 watts for regular 2BHK & 2.5BHK, 800 watts for 3BHK and 1000 watts for 3.5BHK with Automatic Changeover Current & Limiter (ACCL). (Instead of pre-designed use of equipment during power cut flexibility to use equipment / appliance of choice within the allotted power capacity) -(U)

Full power backup will be provided for common areas.

Communication / Entertainment / Security

Stand-alone Video Door Phone (VDP) will be provided for each apartments. -(U)

Provision for telephone, pre-wired coaxial cable for DTH easy connectivity

24 x 7 CCTV surveillance camera for basement, stilt, entry & exit

Elevator

13 Passenger stretcher lift Schindler/ FUJITEC or equivalent will be provided.
