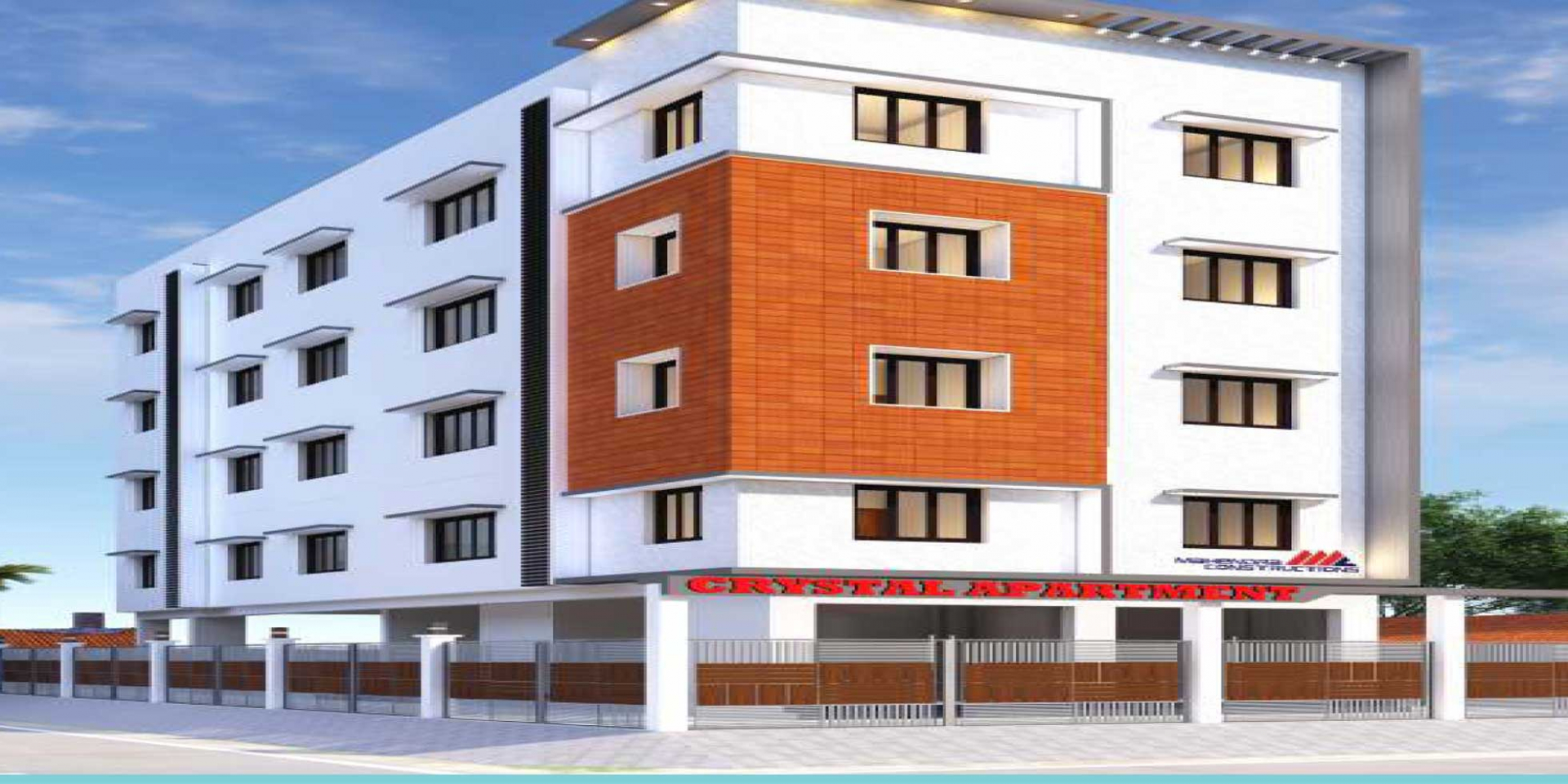

Crystal

Super structural details:

Foundation Design as per structural design.

R.C.C framed super structure.

Stilt flooring level 3' from the road level.

Brick MASONRY walls.

Anti-termite treatment at basement level.

M-sand for Brick work and concrete and P-Sand for Plastering.

Wooden Joineries

Main door teakwood frame (6"x4") size. Teak panelled shutters 1 ½ thick for main door with door stopper, Brass hinges, brass tower bolt, door viewer and godrej lock or equivalent.

Bedroom door frame teak wood (4"x3") and shutters are American skin ISI Flush doors with door stopper, 55 hinges, SS tower bolt and Victory lock or equivalent.

Windows UPVC with M.S.Grills

French doors UPVC frame and doors sliding with toughened glass & without grills.

Bathroom Ventilators fixed / adjustable louvers with pinhead glass panes.

Bathroom doors semi UPVC doors.

Floorings and cladding

4'0" x 2'0" Vitrified tiles for all rooms, (Varmora, Orient bell, or equivalent)

Bathroom dadoing up to 7 level; size of tile 12" x 18". (Varmora, Orient bell, or equivalent).

Bathroom Flooring tiles Anti Skid 1'0" x 1'0" (Varmora, Orient bell, or equivalent).

UTILITY/BALCONY

1'0" x 1'0" Anti Skid tiles. (Varmora, Orient bell, or equivalent).

Plumbing & Sanitary Fittings

All concealed water line for hot and cold is CPVC pipes. (Prince or equivalent).

Ceramic fitting Parryware (or) equivalent.

Parryware Closet Flair Model & Wall Mounted with exposed tank. (or) equivalent.

Wash basin-Parryware Flair/Tapti Model. (or) equivalent.

CP fittings are Jaguar (Continental) or Parryware (Agate Pro), (or) equivalent.

Tap, Shower 2 in 1 Wall mixer-Jaguar (Continental) or Parryware (Agate Pro) (or) equivalent.

Painting

Ceiling level plast and two coats ACE emulsion, (Asian or Dulux)

Inner walls are full putty and one coat of primer and two coats of acrylic premium emulsion. (Asian or Dulux)

Ace Exterior weather shield paints for Exterior walls. (Asian or Dulux)

Enamel paint for bedroom doors. (Asian or Dulux)

Main door teakwood melamine finish. (Asian or Dulux)

External Works

One common 6 dia bore well/4' dia open well.

One common sump 12,000 liter capacity with Metro water connections

One common over head tank 12,000 liter capacity.

Drive way with paving block.

Car parking ellis pattern flooring.

Staircase Steps with Granite.

MS hand rail for stairs

Terrace weathering course with Cool Tiles.

Parapet wall height will be of 3'6" from floor level with 9" brick work.
