1. STRUCTURE
Structural system: RCC Framed Structure designed for seismic compliance (Zone 3)
Masonry: 200mm for external walls & 100mm for internal walls.

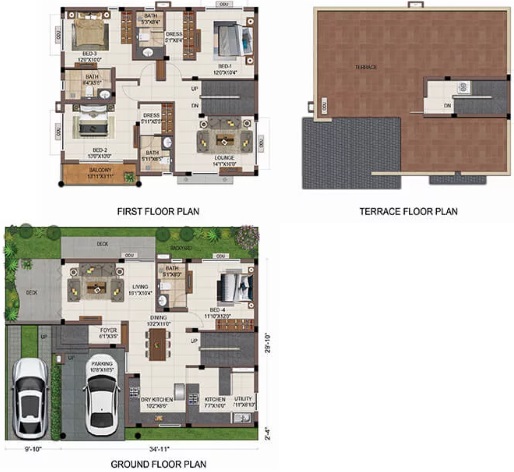

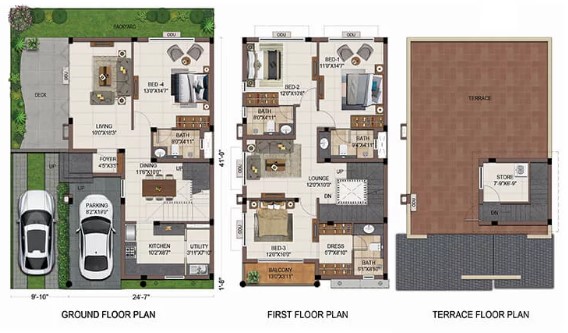

Floor-floor height (incl. slab): Will be maintained as 3350mm for Ground floor and 3150mm for First floor based on design intent
ATT: Anti-termite treatment will be done
2. WALL FINISH
Internal walls: All internal walls will be finished with 2 coats of putty, 1 coat of primer & 2 coats of emulsion
Ceiling: Finished with 2 coats of putty, 1 coat of primer & 2 coats of emulsion
Exterior walls: Exterior faces of the building finished with 1 coat of primer & 2 coats of exterior emulsion paint with color as per architect design
Bathroom: Glazed ceramic tile up to 2700mm height of size 300x600 mm
Kitchen: Ceramic wall tile of size 300 x 600mm for a height of 600mm above the countertop finished level
3. FLOOR FINISH WITH SKIRTING
Foyer, living, dining, bedrooms & kitchen: Vitrified tiles of size 600x1200mm
Bathroom: Anti-skid ceramic tiles of size 600x600mm
Balcony: Anti-skid ceramic tiles of size 600x600mm
Kitchen deck: Anti-skid vitrified tiles of size 600x600mm
Living deck: Anti-skid vitrified tiles of size 600x600mm
Terrace: Pressed tiles finish/ equivalent
Car parking: Kota stones/Pavers/Eurocon tiles finish
4. KITCHEN & DINING
Kitchen: Platform will be 600mm wide and height of 800mm from the finished floor level and finished with granite/equivalent
Electrical point: For chimney & water purifier
CP fitting: Kohler/American Standard/Equivalent
Sink: Stainless Steel with drain board
Dining: Wall mount washbasin wherever applicable
5. BALCONY/PRIVATE OPEN TERRACE
Handrail: MS handrail as per architect's design
6. STAIRCASE
Flooring: Granite flooring finish for the staircase as per architect's design
Handrail: MS handrail as per architect's design
7. BATHROOMS
Sanitary fixture: American Standard/Kohler/equivalent
CP fittings: American Standard/Kohler/equivalent
Master bathroom: Wall-mounted WC with cistern, Health faucet, Shower column with glass partition & Counter top wash basin with Granite platform
Other bathrooms: Wall mounted WC with cistern, Health faucet, Single lever diverter with overhead shower and counter mount wash basin
8. JOINERY
a. DOORS
Main door: Wide & fancy door of size 1050x2400mm of Engineered door frame & shutters of veneer finish with Architrave and panel on one side
Ironmongeries like Digital door lock of Dorma/Yale /equivalent, tower bolts, door viewer, safety latch, door stopper and door closure
Bedroom doors: Good quality door frame with double side laminated shutter of size (900x2400mm)
Ironmongeries like door lock of Godrej /equivalent, door stopper, door bush, tower bolt
Bathroom doors: Good quality door frame with double side laminated shutter of size (800 X 2400mm) with waterproofing resistant on the inner side
Ironmongeries like thumb turn lock of Godrej/equivalent
Terrace doors: Good quality door frame with FRP shutters of size (900X2100mm) with waterproofing resistant on the outer side
Ironmongeries like thumb turn lock of Godrej /equivalent, door bush
b. WINDOWS
Windows: UPVC/Aluminum windows with sliding shutter with toughened glass wherever applicable (Grills will be provided at an additional cost upon modification requested)
French doors: UPVC/Aluminum frame with foldable door shutters and toughened glass.
Ventilators: UPVC/Aluminum frame of fixed/adjustable louver
9. ELECTRICAL POINTS
Power supply: 3 PHASE power supply connection
Safety device: MCB & ELCB (Earth leakage Circuit breaker)
Switches & sockets: Modular box, modular switches & sockets of Honywell/Schneider/equivalent
Wires: Fire Retardant Low Smoke (FRLS) copper wire of a quality IS brand
TV: Point in Living & Bed-1 and provision in other bedroom & Lounge
Telephone: Point in Living & Bed-1
Mobile charging dock: Mobile charging dock provided in the living room
Bluetooth speaker: Speaker with Bluetooth facility - for kitchen
HOB point: Point provided in the kitchen
Video doorbell: Provided at the entrance - Main door
Data: Point in Living and provision in First Floor Lounge
Split-air conditioner: Point will be provided in Living/Dining & All bedrooms
Exhaust fan: Point will be given in all bathrooms
Geyser: Geyser point will be provided in all toilets
Backup: Inverter provision for all room fans and light points
OUTDOOR FEATURES
Water storage: Centralized UG sump with WTP (Min. requirement as per water test report)
Rainwater harvesting: Rainwater harvesting at site
STP: Centralized Sewage Treatment plant
Intercom: Intercom will be provided
Common backup: 100% Power backup for common amenities such as club house, WTP, STP & selective common area lighting
Safety: CCTV surveillance cameras will be provided all around the building at pivotal locations in the ground
Security: Security booth will be provided at the entrance

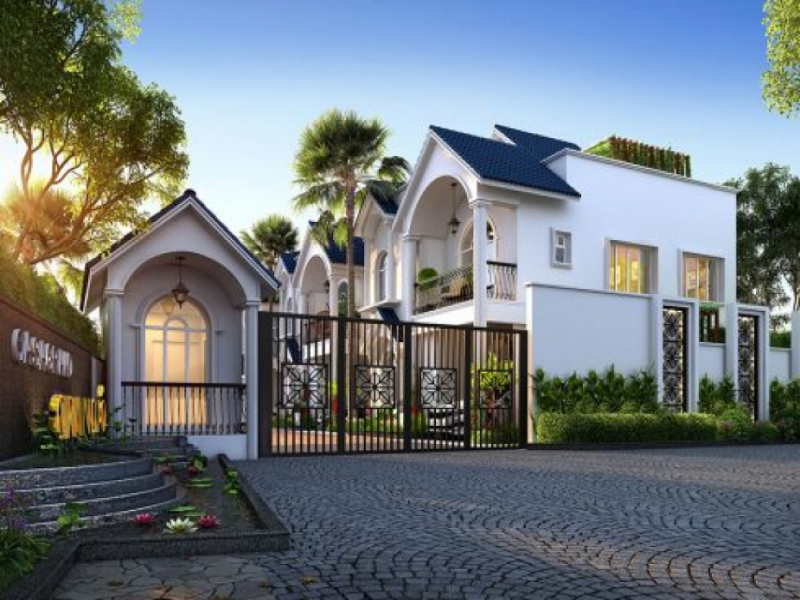

Compound wall: Site perimeter fenced by compound wall with entry gates for a height of 1800mm / as per Landscape design intent

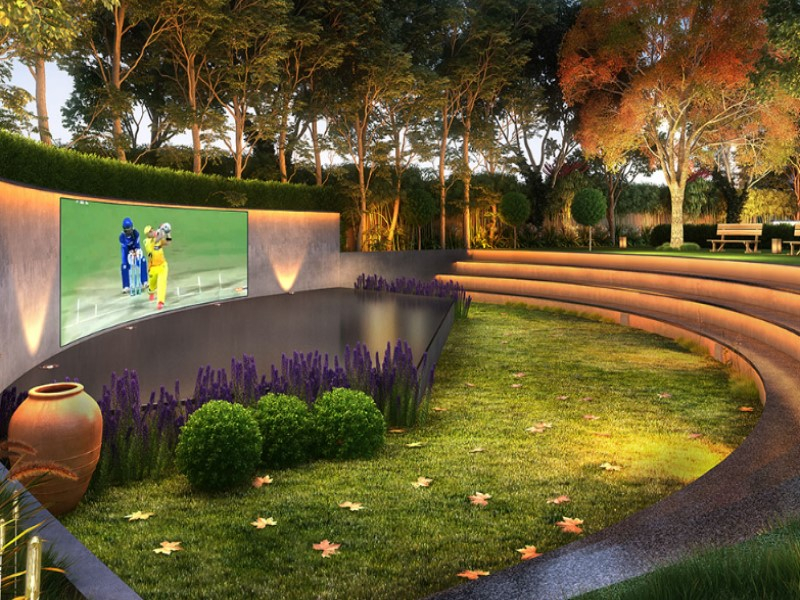

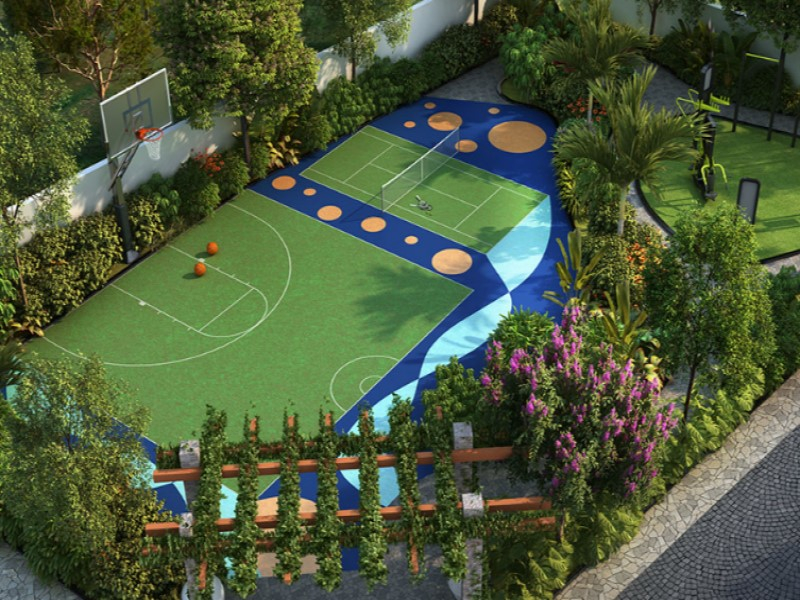

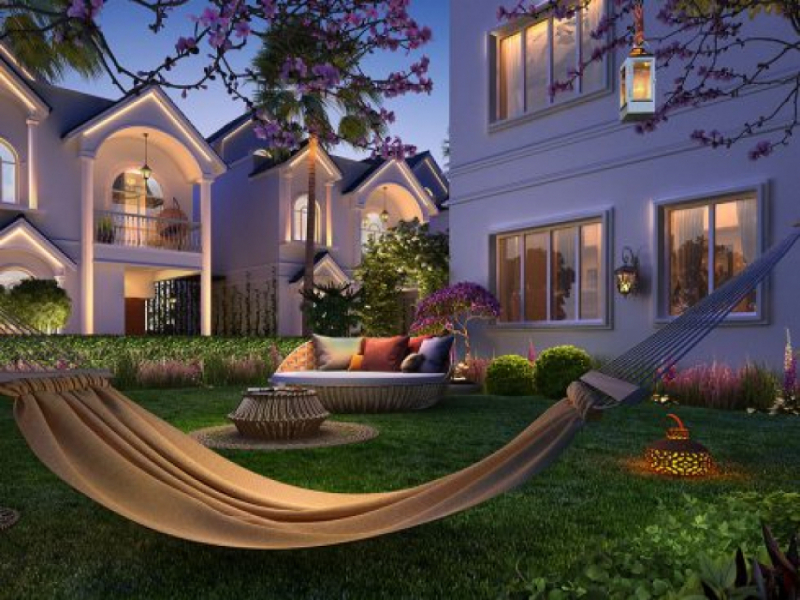

Landscape: Suitable landscape at appropriate places in the project
Internal roads: Pavers/Bitumen finish roads as per design intent
Driveway: Convex mirror for safe turning in driveway in/out
