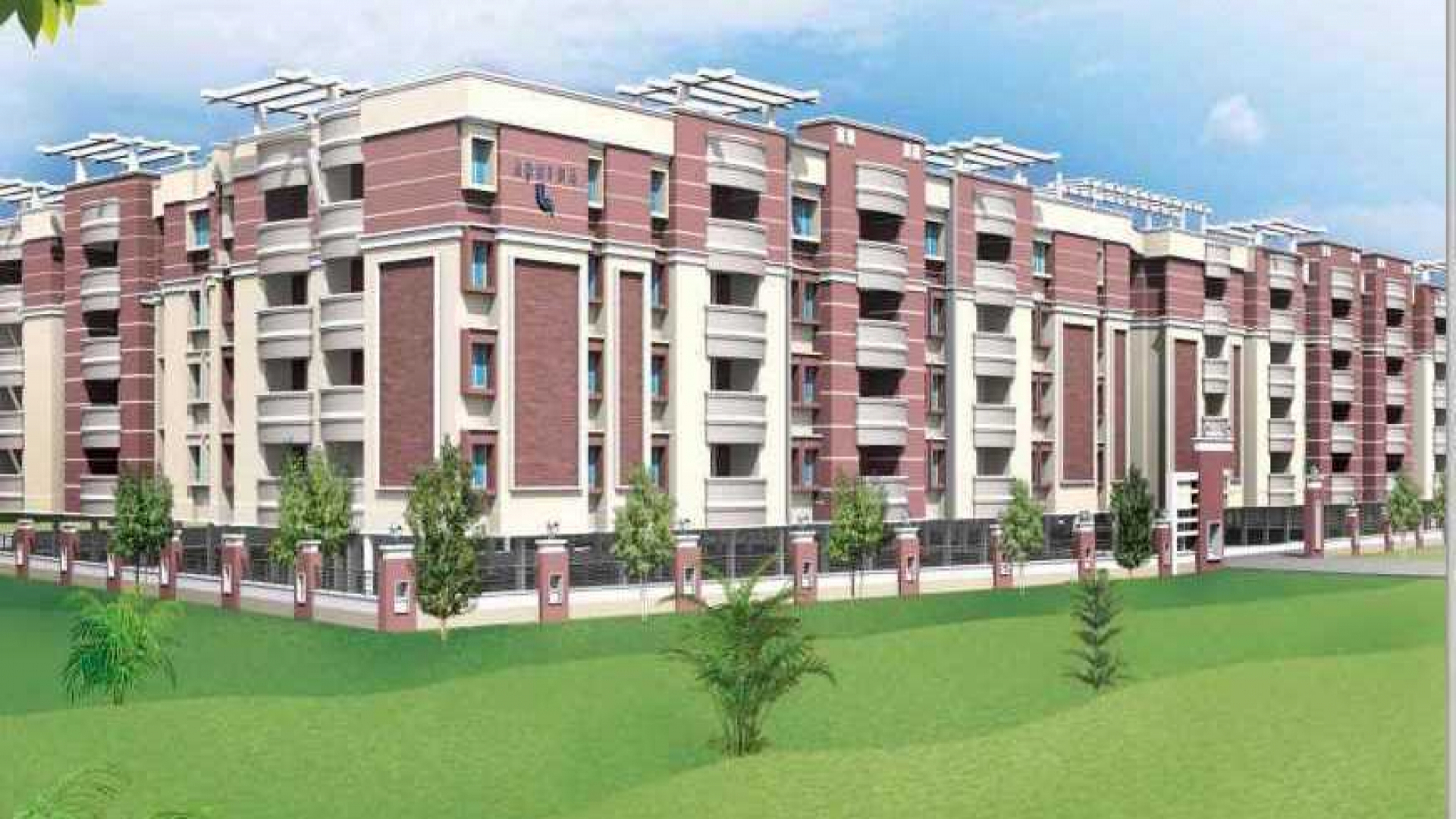

Appurva UG Gold

STRUCTURE

RCC framed structure designed for seismic consideration of zone 3 stipulated by IS code

Specifically designed UG Panel formwork system to smooth and uniform finishes to concrete surface

External walls are 200mm thick solid block work and internal walls are 100mm thick block walls

Covered Car park at Stilt Level

WALL FINISHES

External Walls: Cement plaster finish in exterior weather proof paint

Internal Walls: Cement plaster finished with primer, putty and acrylic emulsion paint

Toilet Walls: Glazed ceramic tiles up to false ceiling height

Kitchen Walls: Glazed ceramic tiles, up to the ceiling level, above the counter and oil bound distemper for rest of the area

Lobby at stilt floor: Vitrified tiles

FLOOR FINISHES

Living, Dining, Bedrooms, Kitchen, Passage: Vitrified tiles with 80mm skirting

Toilets, Utility & Balcony: Anti skid ceramic tiles over water proofing and screed

Staircase: Mosaic Tiles/Polished Kola stone

CEILING

Fair face finished with distemper - 3 coat painting system on all ceiling except toilets

60 x 60 cm Moist Resistant Gypsum Board false ceiling grids in toilets

KITCHEN

Black Granite Counter with stainless steel sink of single bowl with drain board

DOORS AND WINDOWS

Balcony Doors: Anodized Aluminum Sliding door

Entrance Door: Polished Teak wood frame with HDF molded laminated flush door

Bedroom Doors: Treated hard wooden frames with enamel painted/polished flush door

Bathroom Doors: Treated hard wooden frames with enamel painted/polished marine flush door

Windows/Ventilators: Anodized aluminum frame with glazed sliding windows

Staircase Railings: MS Railings

Windows/Balcony Grills: 10mm square MS bars as per design

ELECTRICAL

The wiring shall be concealed type for three phase power supply with PVC conduit pipes of required diameter

The wiring shall be with good quality multi strand copper insulated wire

All the switch boards shall have metal boxes of required size with modular switches

The wires for 5 Amps shall be 3/20 rating, wire for lights shall be 1/18 rating and the wires for 15 Amps shall be 7/20 rating

Each flat shall be provided with necessary light points, fan points, exhaust fan points in toilets and calling bell point and power points (5 Amps and 15 Amps)

Each flat shall have separate energy meter located on the main board at ground floor and one common energy meter for common facilities

Each flat shall have independent distribution board with back up provision for generator power of 1KW to maintain the uninterrupted power supply

All the lights/fans/power sockets can be used up to 1KW of generator power in each flat

The backup power will be maintained through a suitable rated generator for common area lighting, pumps and for all the flats (with 1KW for each flat)

The power for Split A/C will be provided for master bedrooms in 2BR/3BR and bedroom 2 in 3BR apartments

The power for water heater will be provided for master bedroom toilet in 2BR/3BR and common toilet in 3BR apartments

Switches and accessories and PVC conduits will be of reputed make as per ISI and IS code

Providing electrical points and fixtures for common facilities like pump room, electrical/DG room and for common areas

PLUMBING & SANITARY WARES

Concealed plumbing work shall be with pressure PVC for cold water & CPVC for hot water supply pipes of specified size of class 3 quality with necessary valves to maintain/pressure suitable for sanitary fittings

Toilets shall have WC, health faucet and wash basin in white colour from reputed make with all necessary fittings

Provision for water heater is provided in master bathroom in 2BR/3BR and common toilet in 3BR apartment

All plumbing fixtures shall be chromium plated brass fittings of reputed make

Kitchen sink shall be provided with swan neck tap

All washbasins shall have PVC battle trap and pillar cock

Soil and waste pipes shall be UPVC pipes (6Kg/sq.cm. pressure) with necessary fittings

The drainage/sewage shall be with 4 and 6 dia. UPVC pipes of prime quality

Exhaust fan provision in toilets and kitchen

Sleeves are provided for refrigerant and drain pipes for split A/C units and drain points are provided for AC condensate water
