SPECIFICATION OF WORK

1. Raft Foundation 10 feet depth from the natural ground level.

2. R.C.C.M25 grade Plinth beam, Size of plinth beam 1'0”x 2'0”.

3. Basement Height 3'0” from the ground level. Based on government approval scheme.

4. Basement filled with good soil. Free from clay and salt.

5. R.C.C. Columns using Rods as per Design.

6. Roof slab, 10feet from the floor level.

7. Roof slab pouring with Ultra Tech Pump Concrete M-25 Grade.

8. Brick work in Superstructure all Main walls 9” thick with C.M.1:4.

9. Brick work in Superstructure all Partition walls 4.5” thick with C.M.1:3.5.

10. R.C.C. Lintel-cum-Sunshade 7feet height from the floor level.

11. Each room will be provide one loft & one shelf (cudapah slabs) 4'x7'.

12. All Ceiling, Inner walls, Outer walls Plastered with C.M. 1:3 & 1:4.

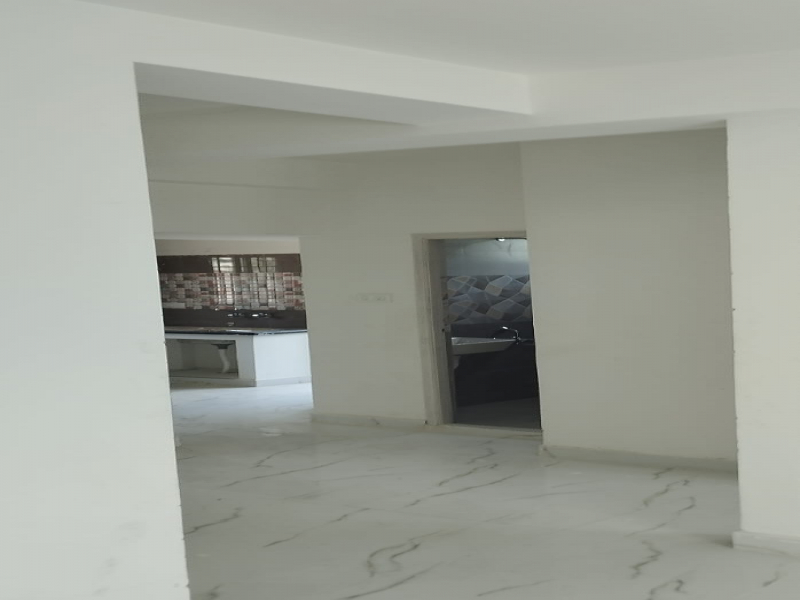

13. Flooring vitrified tile laying 600mmx600mm @ Rs 60/sq.ft.

14. Wall finishing with 2 coats of Birla wall putty & pleasing colour painting (Premium Emulsion) includes one primer & double colouring coats.

15. All doors except main door with one primer & double paint.

16. Main entrance Teak Wood single shutter with 4”x3” Teak wood frame size with full varnishing.

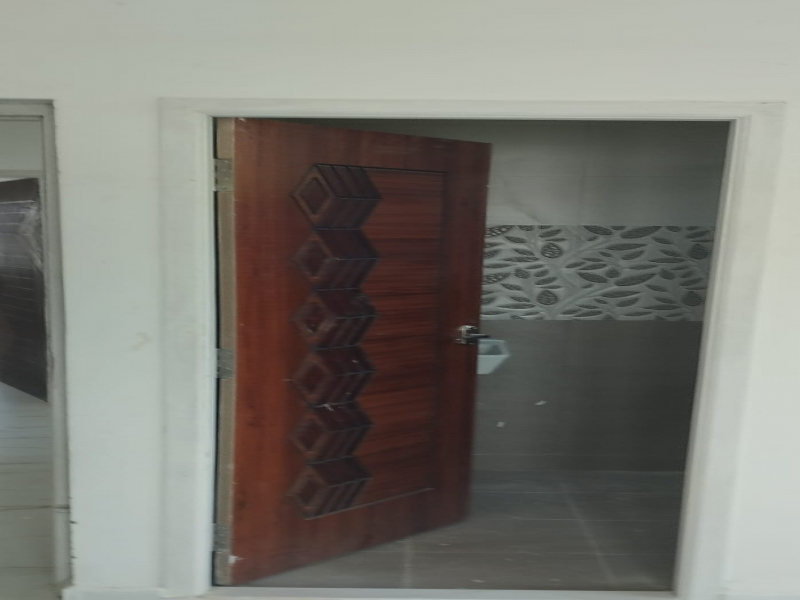

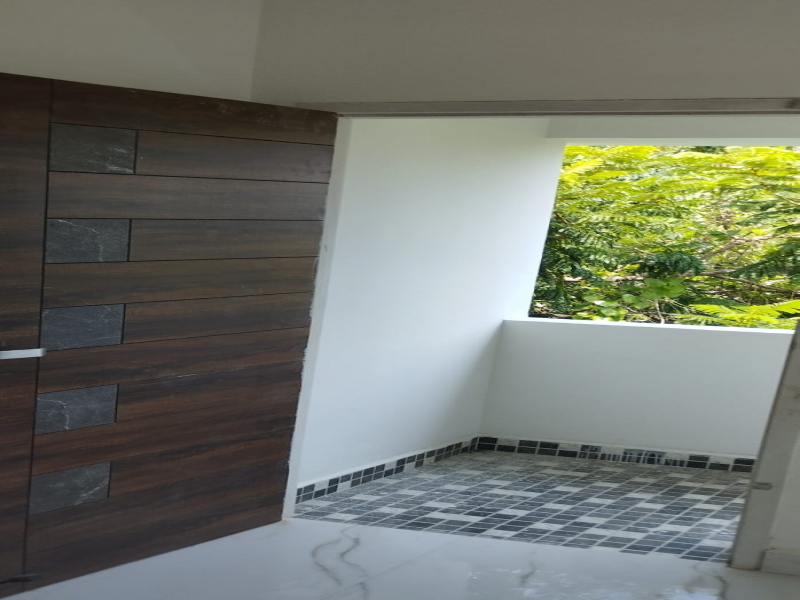

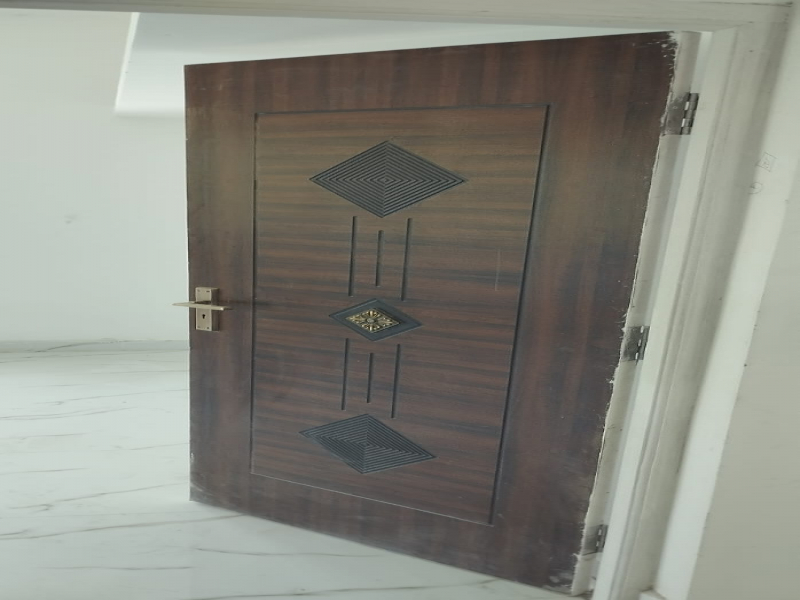

17. All rooms Door frame with Teak wood frame with commercial Ply wood shutter.

18. All windows provided with UPVC Open type Shutter.

19. Godrej main door lock size 4.5”x3” ultra locking model no1ck.

20. Other doors good mortise lock brand name godrej lock.

21. All tap fitting provided with Parry ware brand.

22. Staircase with Granite flooring with Stainless Steel hand rail.

23. 4 to 6 Passenger Lift Provided.

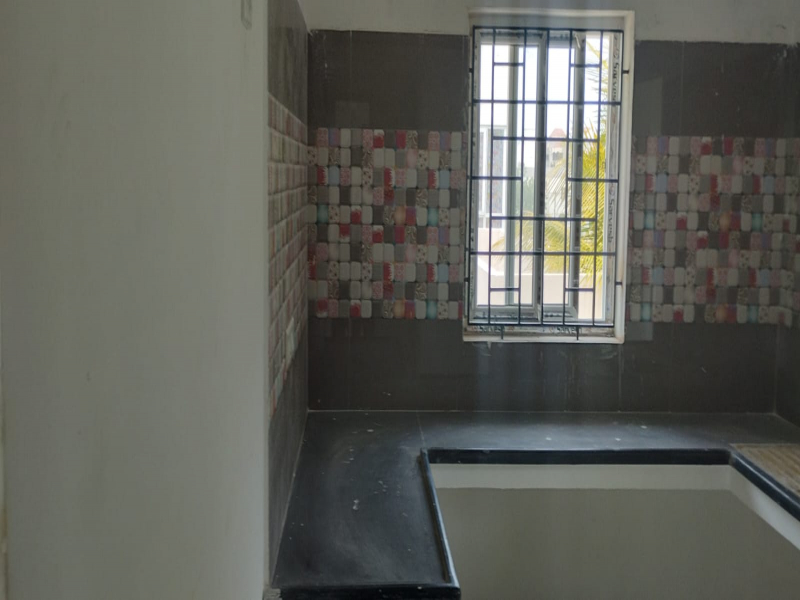

24. Black granite 24” wide (well polished) for cooking platform.

25. Kitchen wall Gladding 4 feet height from the kitchen flatform.

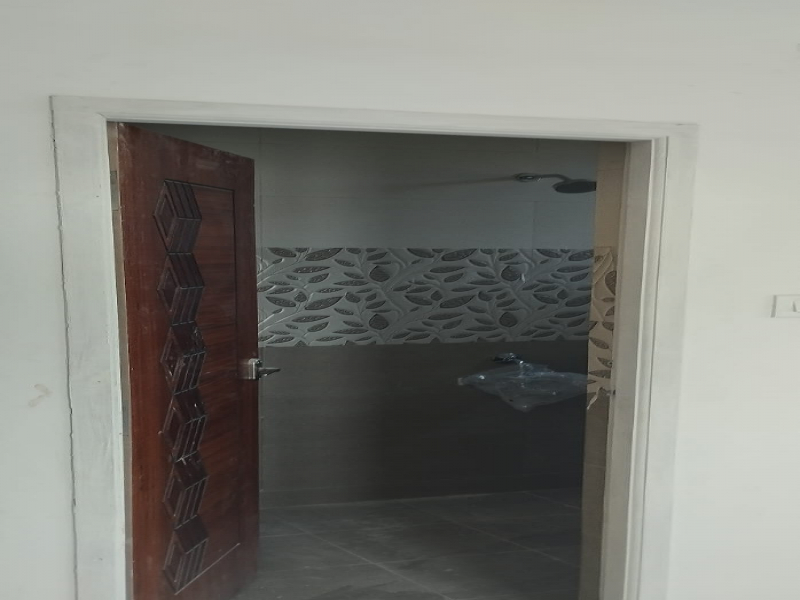

26. Bathroom walls 10 feet height wall gladding tiles and flooring with Anti-skid tile.

27. Parapet wall, 3'9" feet from the roof top level, 4.5 ” thickness and 9”pillar @ 7' c/c

Electrical

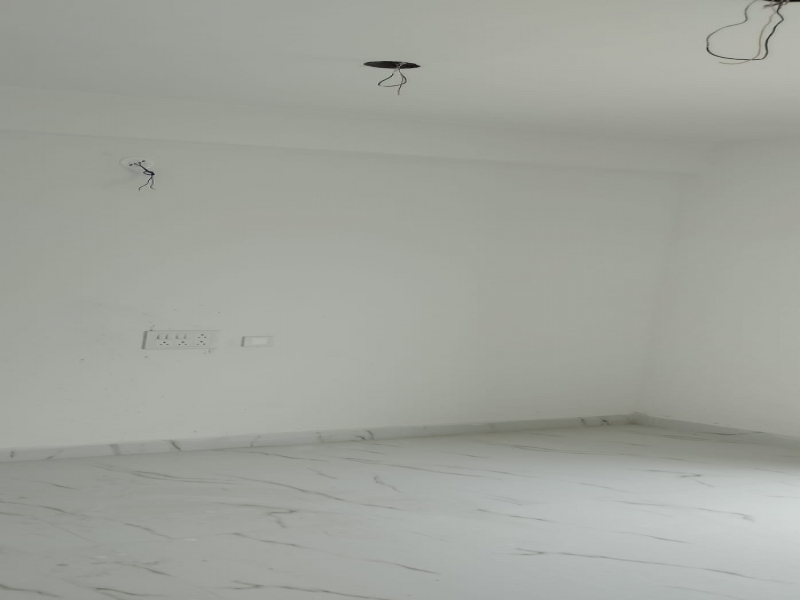

1. Hall cum Dining :4nos of 5 Amps point, 1no of 15 Amps point, 1no of T.V. cable point, 1no of phone point, 2nos of tube light point, 1no of light point, 2nos of fan point. All wires provided with ISI cables (Finolex wires). Electrical Switches provided with modular Switches (Anchor Roma Switches)

2. Master Bedroom : 2nos of 5Amps point 1 sq.mm wires, 1no of fan point, 1 no of TV. Cable point, 1no of tube light point, 1no of light point, 1no of foot lamp point, 1no of split A/c point provision with 7/20 wire, 2nos of two-way switches tube-light & fan.

3. Child Bedroom :2nos of 5Amps point 1 sq.mm wires, 1no of fan point,1no of tube light point, 1no of light point, 1no of foot lamp point, 1no of split A/c point provision with 7/20 wire, 2nos of two-way switches tube-light & fan.

4.Kitchen :3nos of 5Amps point, 2nos of 15Amps point, 1no of fan point, 1no of tube light point, 1no of light point, 1no of Exhaust fan point.

5.Bathroom :1no geyser point with 3/20 wire, 1no of light point, 1no of Exhaust fan point.

6.Common Area :1no calling bell point, 1no of light point in front of the main door entrance, Staircase area common lights provision, Car-parking area common lights provision, 1no of 15 Amps Bore motor, 1no of 15 Amps sump motor. 3-Phase supply MCB type distribution Board with 3-phase change-over switches.

Plumbing

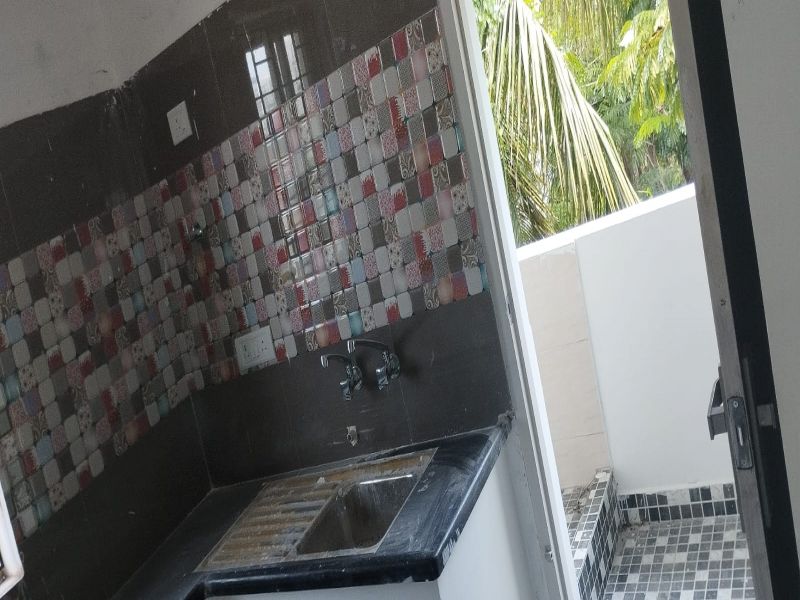

1.Kitchen :Provided Parry-ware brand sink Bowl with drain board.

2.Bathroom : 1no of 2 in 1 wall-mixture tap provided, 1no of short body tap provided, 1no water-closet one for Indian and one for western (Parry-ware) with matching tile colour with flush tank, Parry-ware Wash basin basic model size 18”x16” wall mounted 1no provided.

All concealed plumbing pipes provided with High temperature capacity CPVC pipes.

All taps provided with Metro brand only
